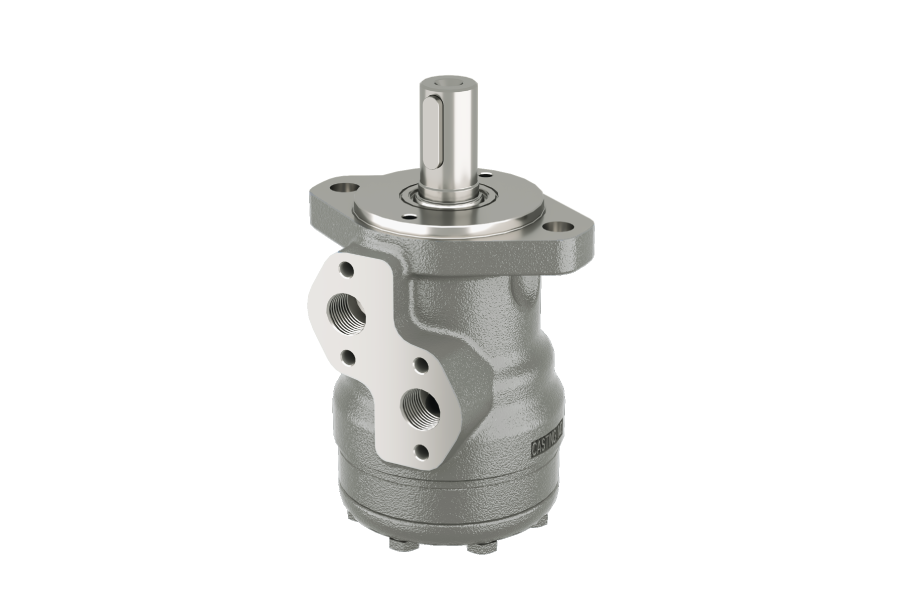

Displacement: 50-375 cc/rev
Max.differential pressure: 80-200 bar
It adopts spool distribution structure, small size and light weight.
It adopts advanced rotary stator parameter design, low starting pressure, high efficiency, and smooth running.
Multiple displacements and mounting sizes are available.
| Type | 50 | 80 | 100 | 125 | 160 | 200 | 250 | 315 | 375 | |
| Displacement (cm3/rev.) | 51.6 | 80.3 | 99.8 | 124.1 | 155.4 | 198.2 | 248.1 | 310.1 | 363.5 | |
| Max.speed (rpm) | Continuous | 748 | 743 | 598 | 473 | 380 | 302 | 239 | 192 | 164 |
| Intermittent | 942 | 921 | 739 | 595 | 476 | 374 | 302 | 240 | 206 | |
| Max.torque (Nm) | Continuous | 111 | 226 | 273 | 338 | 382 | 399 | 411 | 417 | 389 |
| Intermittent | 129 | 252 | 303 | 370 | 431 | 498 | 545 | 556 | 523 | |
| Max.output (kW) | Continuous | 7.0 | 14.0 | 14.0 | 14.0 | 12.6 | 10.5 | 8.8 | 7.0 | 5.6 |
| Intermittent | 8.8 | 15.8 | 17.5 | 17.5 | 15.8 | 13.1 | 10.5 | 8.9 | 7.8 | |
| Max. differential pressure (bar) | Continuous | 150 | 200 | 200 | 200 | 180 | 150 | 125 | 100 | 80 |
| Intermittent | 175 | 225 | 225 | 225 | 215 | 195 | 170 | 140 | 115 | |
| Max.flow (L/min) | Continuous | 40 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
| Intermittent | 50 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | |
| Max.no-load starting pressure (bar) | 10 | 10 | 10 | 10 | 10 | 10 | 7 | 7 | 7 | |
| Min.starting torque (Nm) | Max.continuous differential pressure | 107 | 162 | 267 | 288 | 308 | 354 | 381 | 408 | 366 |
| Max.Intermittent differential pressure | 124 | 189 | 298 | 319 | 371 | 456 | 500 | 537 | 504 | |
| Weight (kg) | 7.1 | 7.3 | 7.7 | 7.9 | 8 | 8.5 | 8.9 | 9.3 | 9.7 | |
